Trafag Picotrans 8244.78.2318 Pressure Transmitter (0–10 bar, 4–20 mA, IP65)
Part no.: Trafag 8244.78.2318
- Trafag Picotrans block-type pressure transmitter, type 8244.78.2318
- Range 0–10 bar gauge (0–1 MPa), 4–20 mA, 10–34 V DC, IP65
- New old stock in original Trafag box, with DIN connector plug
289,00 €
1 in stock
Make an offer
Συχνές Ερωτήσεις
What pressure range does the Trafag Picotrans 8244.78.2318 measure?
This pressure transmitter measures 0–10 bar gauge, equivalent to 0–1 MPa.
What output signal and supply voltage does this pressure transmitter use?
It provides a 4–20 mA two-wire output and operates with a 10–34 V DC supply.
Is the Trafag Picotrans 8244.78.2318 suitable for outdoor or demanding machinery applications?
The transmitter has an IP65 housing and is designed for vibration-prone machinery, compressors, and engine auxiliaries. Please confirm that the environmental conditions and connection requirements match your installation.
What is included with this Trafag pressure transmitter?
The unused new-old-stock unit is supplied in its original Trafag box with the insert and matching DIN connector plug. The item has serial number 321914-005 and date code 28/08.
How can I verify compatibility before ordering?
Please compare part number 8244.78.2318 with your engine or equipment parts list before ordering. You can also request a compatibility check by contacting [email protected].
Compact block-style Trafag Picotrans pressure transmitter, type 8244.78.2318. Measuring range 0–10 bar gauge (0–1 MPa), 4–20 mA two-wire output and 10–34 V DC supply, in an IP65 housing with DIN-style electrical connector. Designed for vibration-prone machinery, compressors and engine auxiliaries.
Specifications
| Part number | Trafag 8244.78.2318 |
|---|---|
| Pressure range | 0–10 bar (gauge) / 0–1 MPa |
| Output signal | 4–20 mA |
| Supply voltage | 10–34 V DC |
| Protection rating | IP65 |
| Date code | 28/08 |
| Condition | New old stock – unused, original packaging |
Condition & what’s in the box

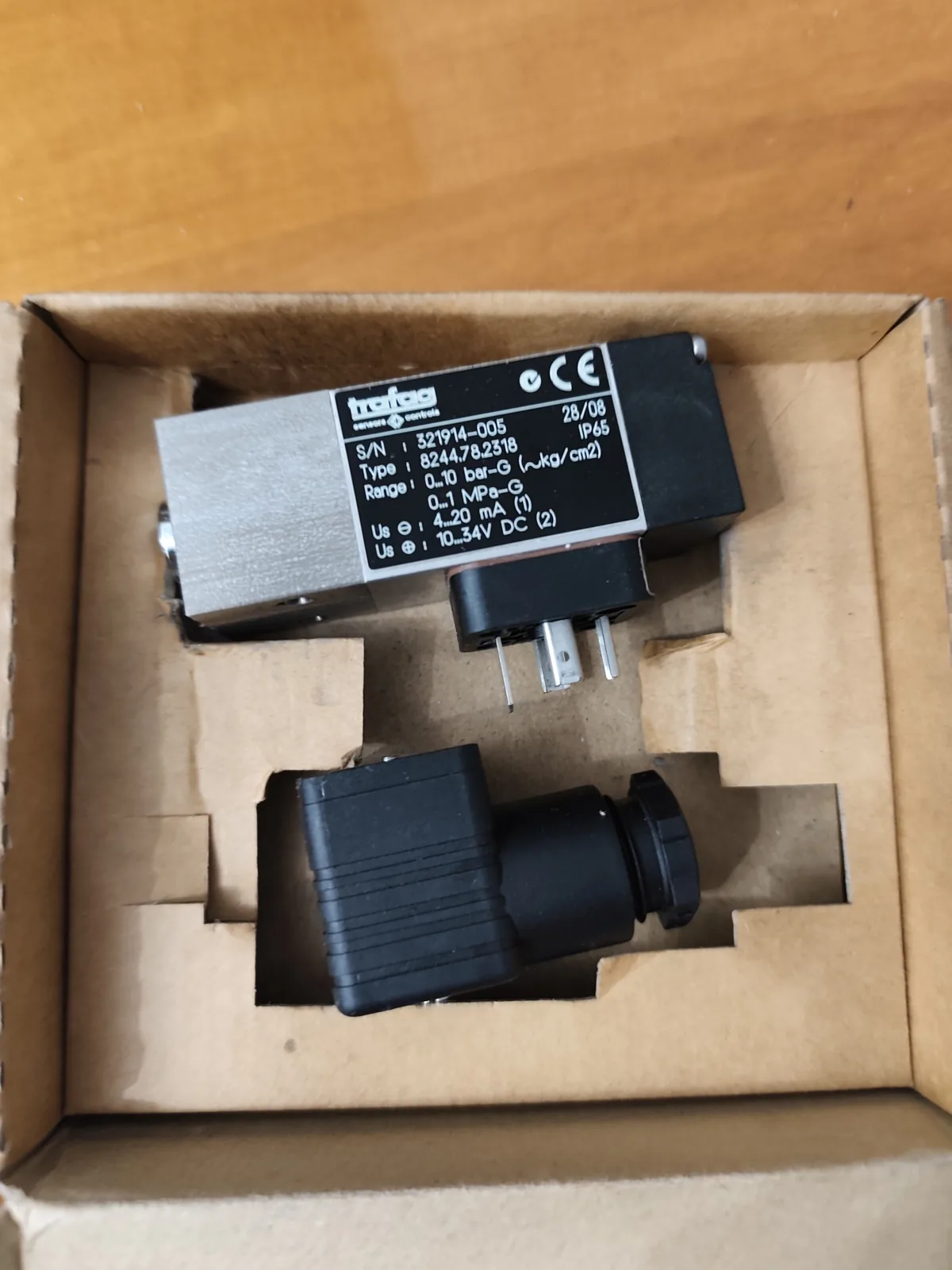

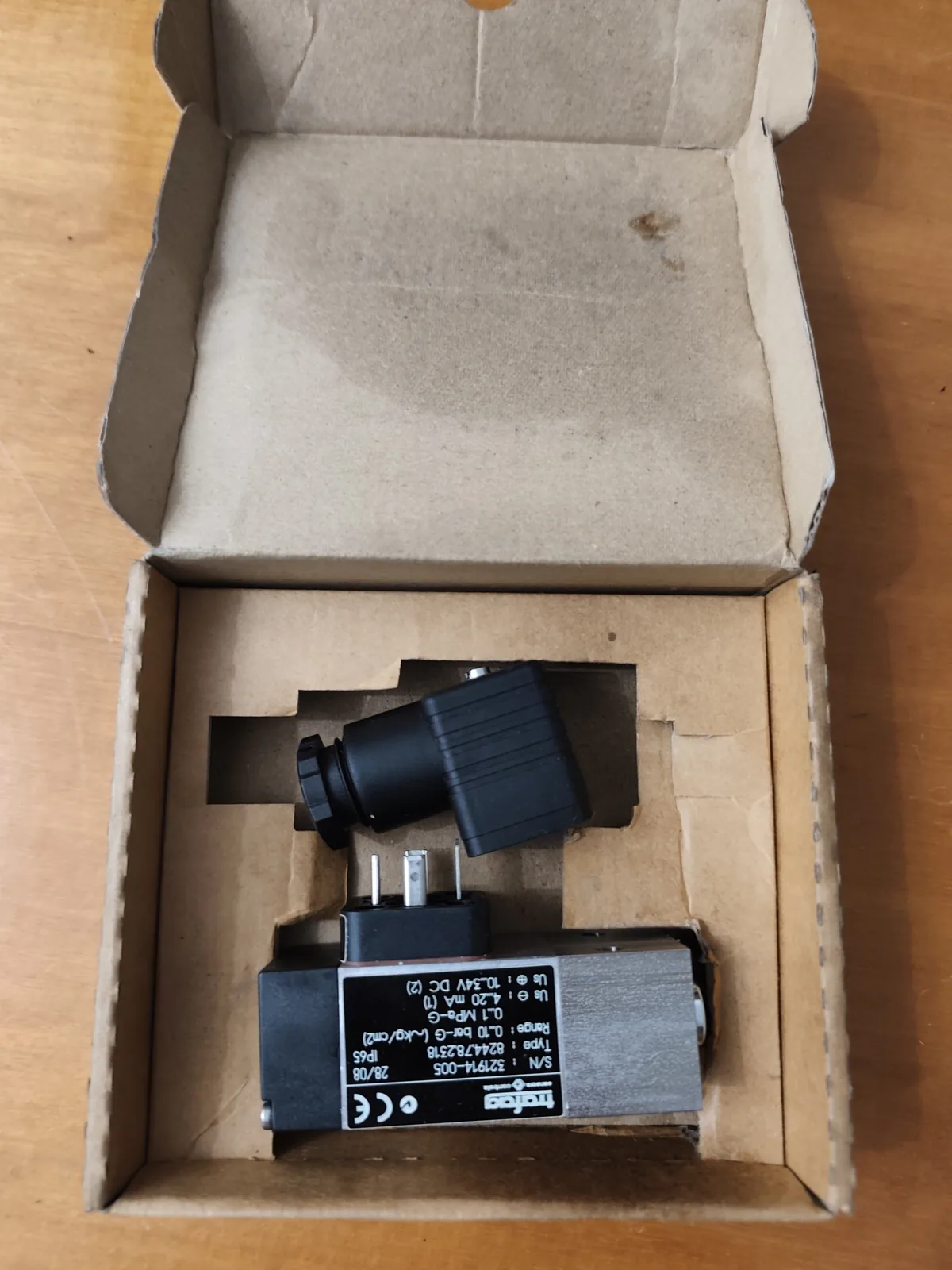

Supplied in the original Trafag box with insert and the matching DIN connector plug. S/N 321914-005, date code 28/08 (week 28/2008). Unused new-old-stock.
Compatibility: Please verify the part number against your engine’s parts list before ordering — we’re happy to check for you: [email protected]
Ships from Nikaia, Piraeus (Greece). Additional photos of the actual item are available on request.
Part number & search references
Trafag part number written as: 8244.78.2318 · 8244782318 · 8244 78 2318
| Weight | 0,3 kg |
|---|---|
| Part number | Trafag 8244.78.2318 |
| Pressure range | 0–10 bar (gauge) / 0–1 MPa |
| Output signal | 4–20 mA |
| Supply voltage | 10–34 V DC |
| Protection rating | IP65 |
| Date code | 28/08 |
| Condition | New old stock – unused, original packaging |
