MTU 001 535 86 31 Pressure Transmitter (Trafag 8842.76.2210, 0–4 bar, 4–20 mA)
Part no.: MTU 001 535 86 31 / Trafag 8842.76.2210
- Compact pressure transmitter for MTU diesel engines, MTU part no. 001 535 86 31
- Range 0–4 bar gauge, 4–20 mA two-wire output, 12–34 V DC
- New old stock, unused, in individual boxes
419,00 €
2 in stock
Make an offer
Συχνές Ερωτήσεις
What pressure range does the MTU 001 535 86 31 pressure transmitter measure?
This pressure transmitter measures 0–4 bar gauge pressure. Its maximum pressure rating is 8 bar.
What electrical output and supply voltage does this pressure transmitter use?
It provides a 4–20 mA loop output and operates with a 12–34 V DC supply.
Is the MTU 001 535 86 31 pressure transmitter new or used?

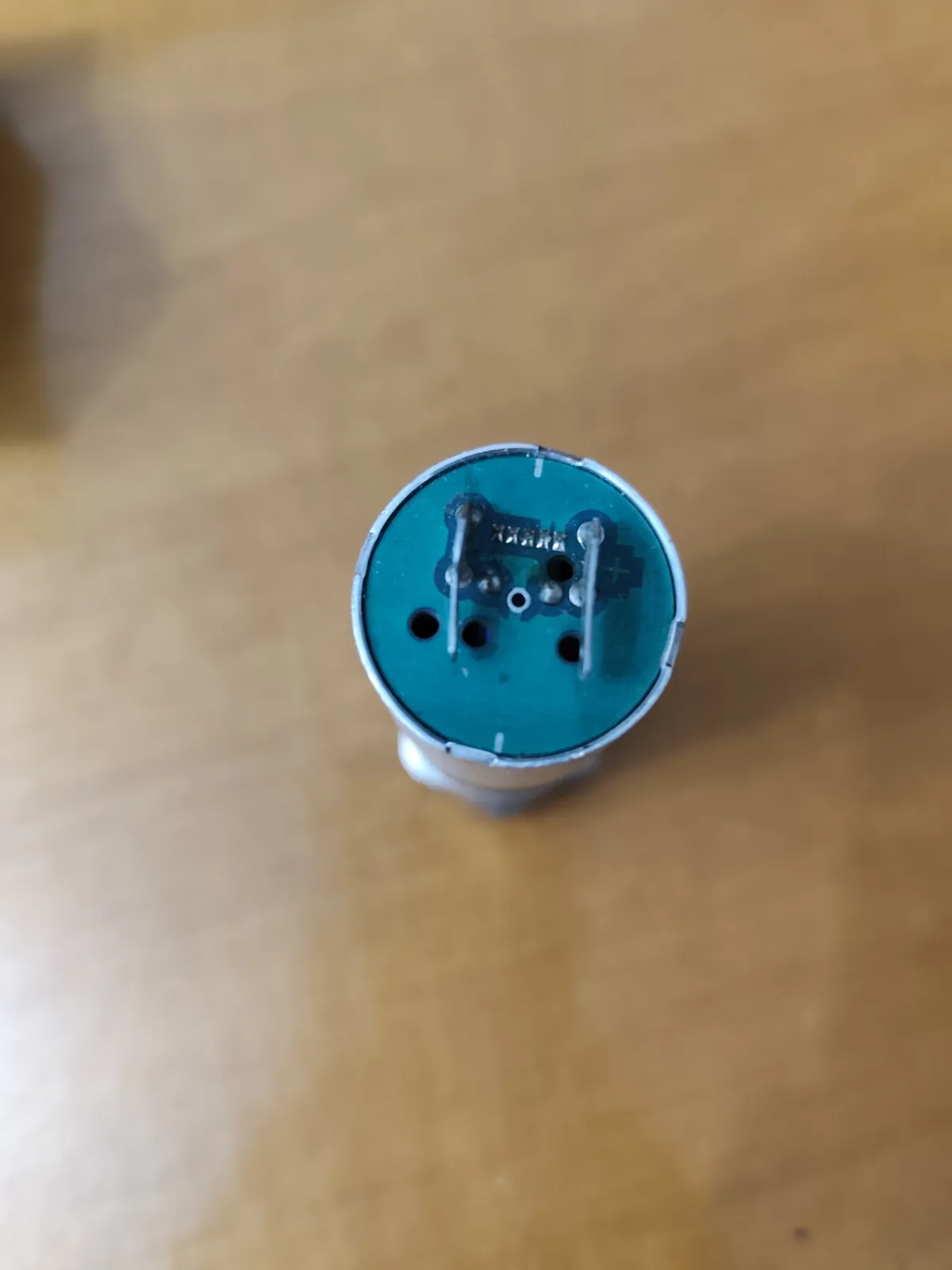

The transmitter is new old stock: unused, never installed, and supplied in its original individual labelled packaging. Exposed contacts are visible at the connector end as delivered.
How can I verify that this pressure transmitter is compatible with my engine?
Please compare MTU part number 001 535 86 31, also written as 0015358631, with your engine parts list before ordering. Compatibility can also be checked by contacting [email protected].
What date codes are available, and where does the part ship from?
The available units have date codes 11/03 and 05/04, with one date code per unit. The part ships from Nikaia, Piraeus, Greece.

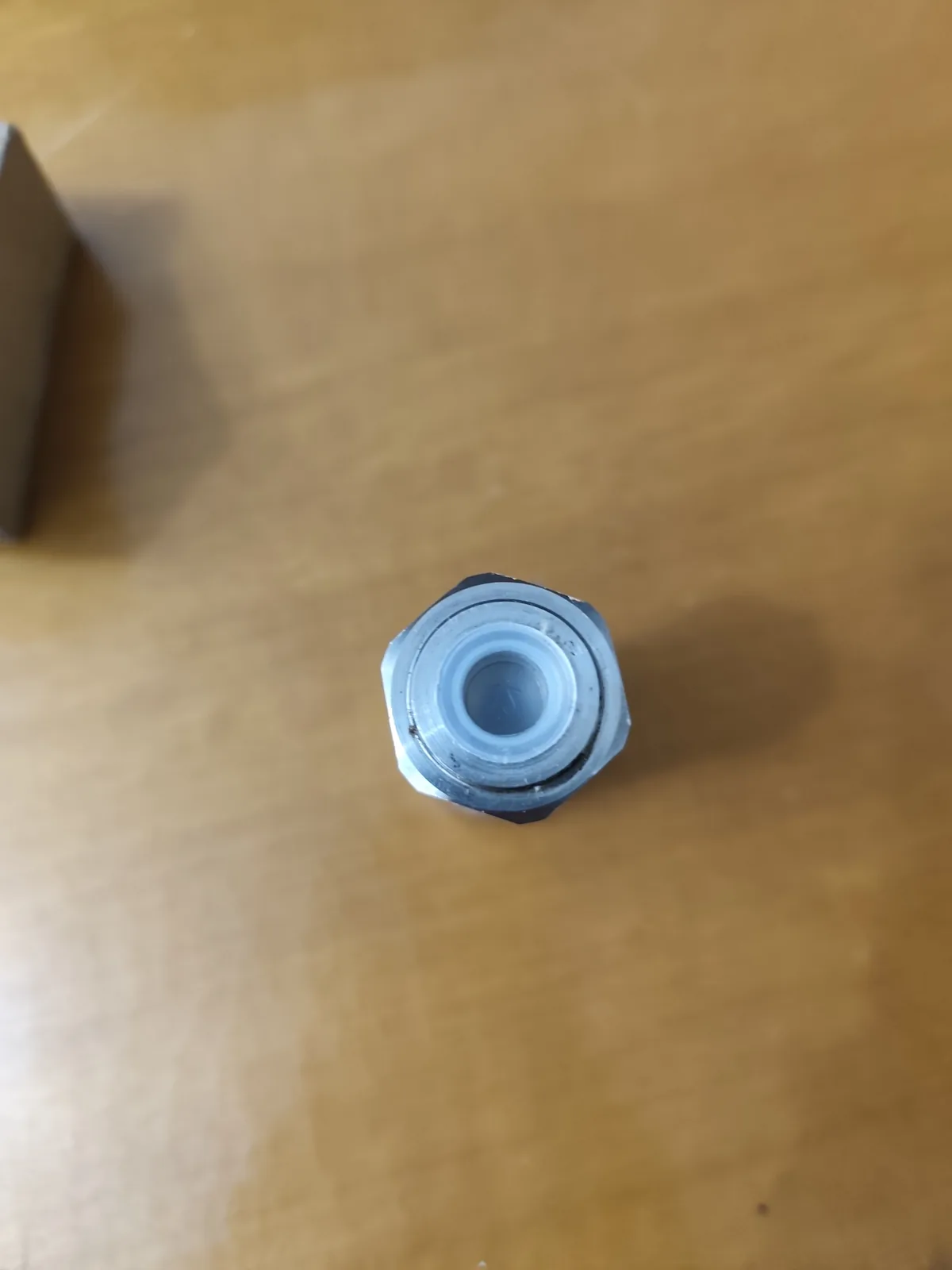

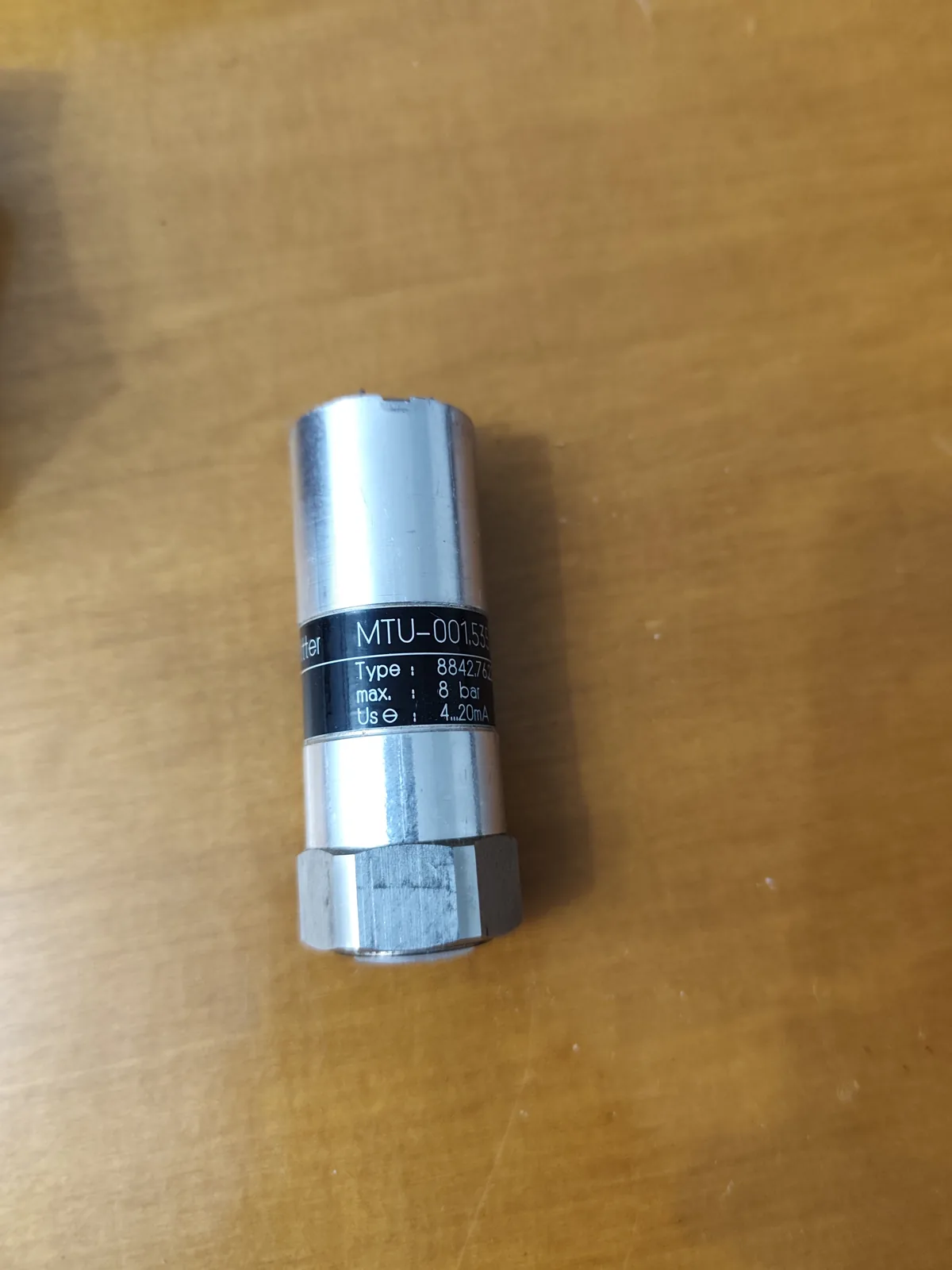

Compact stainless-steel pressure transmitter supplied under MTU part number 001 535 86 31, built to Trafag type 8842.76.2210. It converts a 0–4 bar gauge pressure into a 4–20 mA loop signal for the engine monitoring system and is typically used for low-pressure measuring points on MTU marine and genset engines.
Specifications
| Part number | MTU 001 535 86 31 (0015358631) |
|---|---|
| Type | 8842.76.2210 |
| Pressure range | 0–4 bar (gauge) |
| Max. pressure | 8 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–34 V DC |
| Date code | 11/03 and 05/04 (one per unit) |
| Condition | New old stock – unused, original packaging |
Condition & what’s in the box

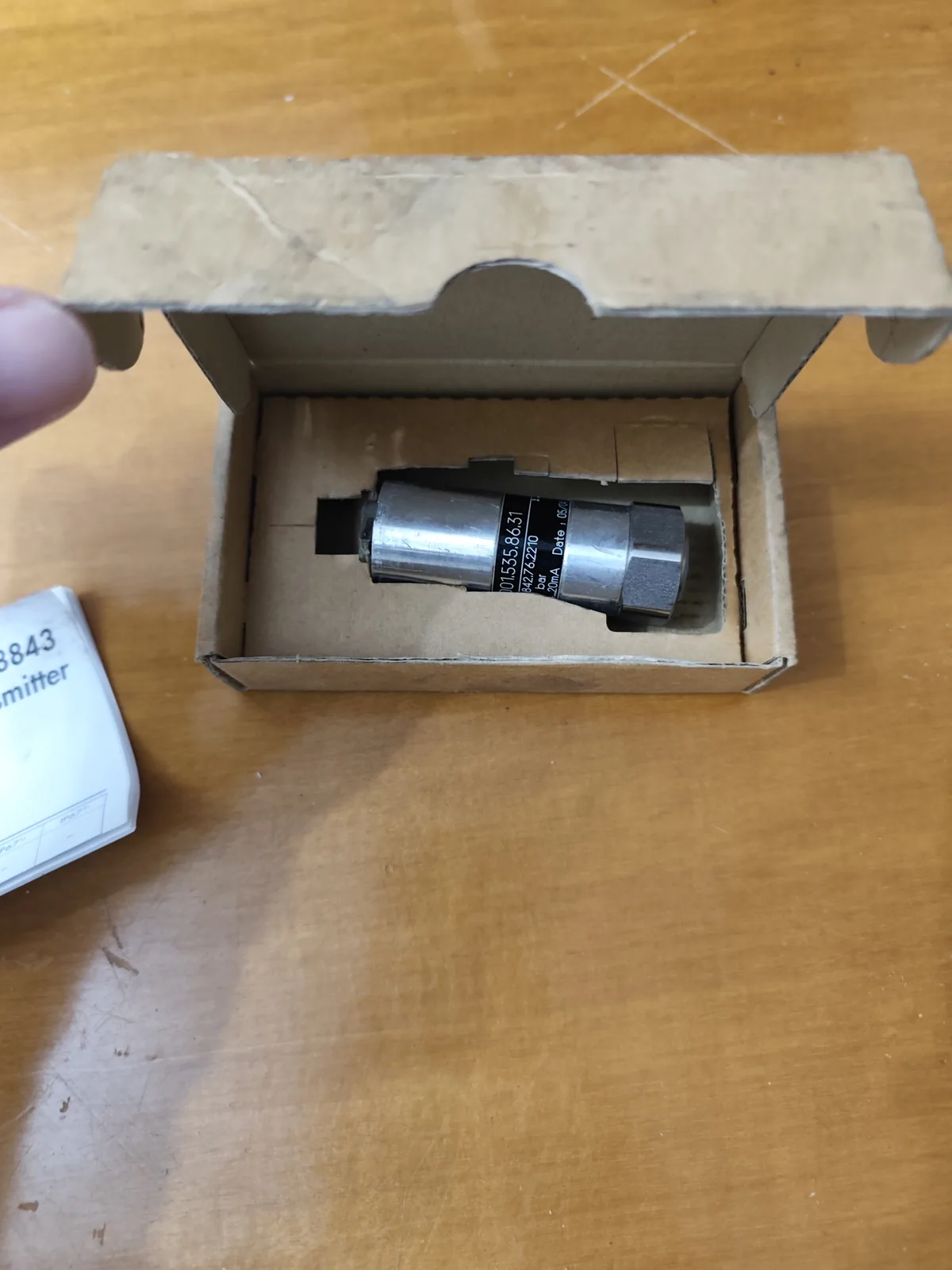

Each transmitter comes in its individual labelled box. Two units are in stock; the date codes are 11/03 and 05/04, so these are older new-old-stock parts that have never been installed. Exposed contacts are visible at the connector end (as delivered).
Compatibility: Please verify the part number against your engine’s parts list before ordering — we’re happy to check for you: [email protected]
Ships from Nikaia, Piraeus (Greece). Additional photos of the actual item are available on request.
Part number & search references
MTU part number written as: 001 535 86 31 · 0015358631 · 001.535.86.31 · 001-535-86-31 · 8842.76.2210 · 8842762210 · 8842 76 2210
| Weight | 0,3 kg |
|---|---|
| Part number | MTU 001 535 86 31 (0015358631) |
| Type | 8842.76.2210 |
| Pressure range | 0–4 bar (gauge) |
| Max. pressure | 8 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–34 V DC |
| Date code | 11/03 and 05/04 (one per unit) |
| Condition | New old stock – unused, original packaging |
