MTU 001 535 91 31 Pressure Transmitter (Type 8842.29, 0–50 bar, 4–20 mA)
Part no.: MTU 001 535 91 31 / Trafag 8842.29
- Legacy MTU pressure transmitter, MTU part no. 001 535 91 31
- Range 0–50 bar gauge (max. 100 bar), 4–20 mA output, 12–34 V DC
- New old stock (date code 09/91), unused, boxed
469,00 €
1 in stock
Make an offer
Συχνές Ερωτήσεις
What is the pressure range of the MTU 001 535 91 31 pressure transmitter?
It measures 0–50 bar gauge pressure and has a maximum pressure rating of 100 bar.
What electrical signal and supply voltage does this pressure transmitter require?
The transmitter provides a 4–20 mA output signal and operates with a 12–34 V DC power supply.
Is this pressure transmitter compatible with my MTU engine installation?
Compatibility should be confirmed by matching part number MTU 001 535 91 31 (0015359131) and type 8842.29 with your engine’s parts list. You can contact [email protected] for assistance checking compatibility.
What is the condition of this MTU pressure transmitter?
It is new old stock, unused, and supplied in its original cardboard box with an insert. The date code is 09/91, and minor storage marks on the hex may be present.
Can I request additional photos before ordering?
Yes, additional photos of the actual item are available on request. The item ships from Nikaia, Piraeus, Greece.

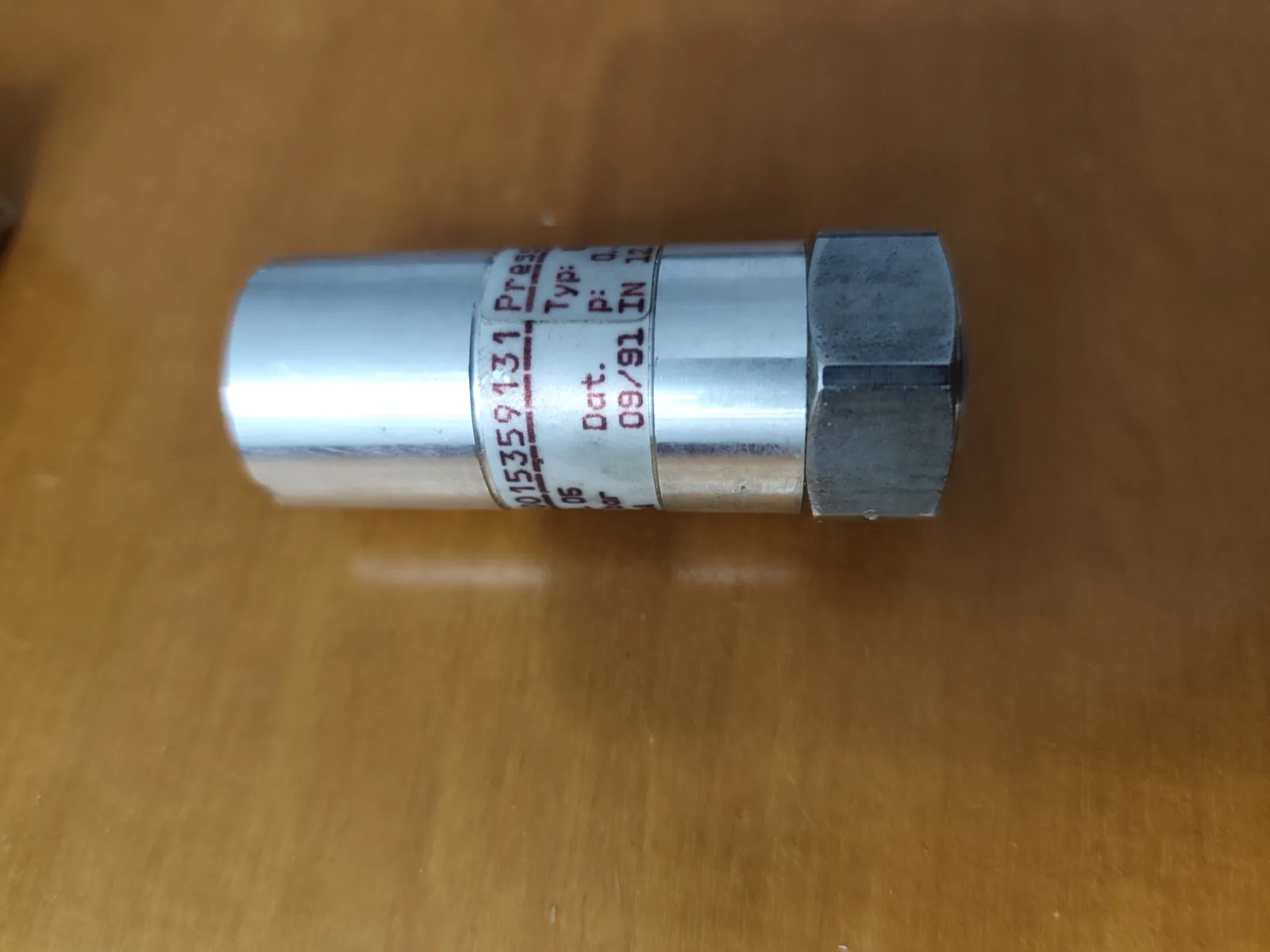

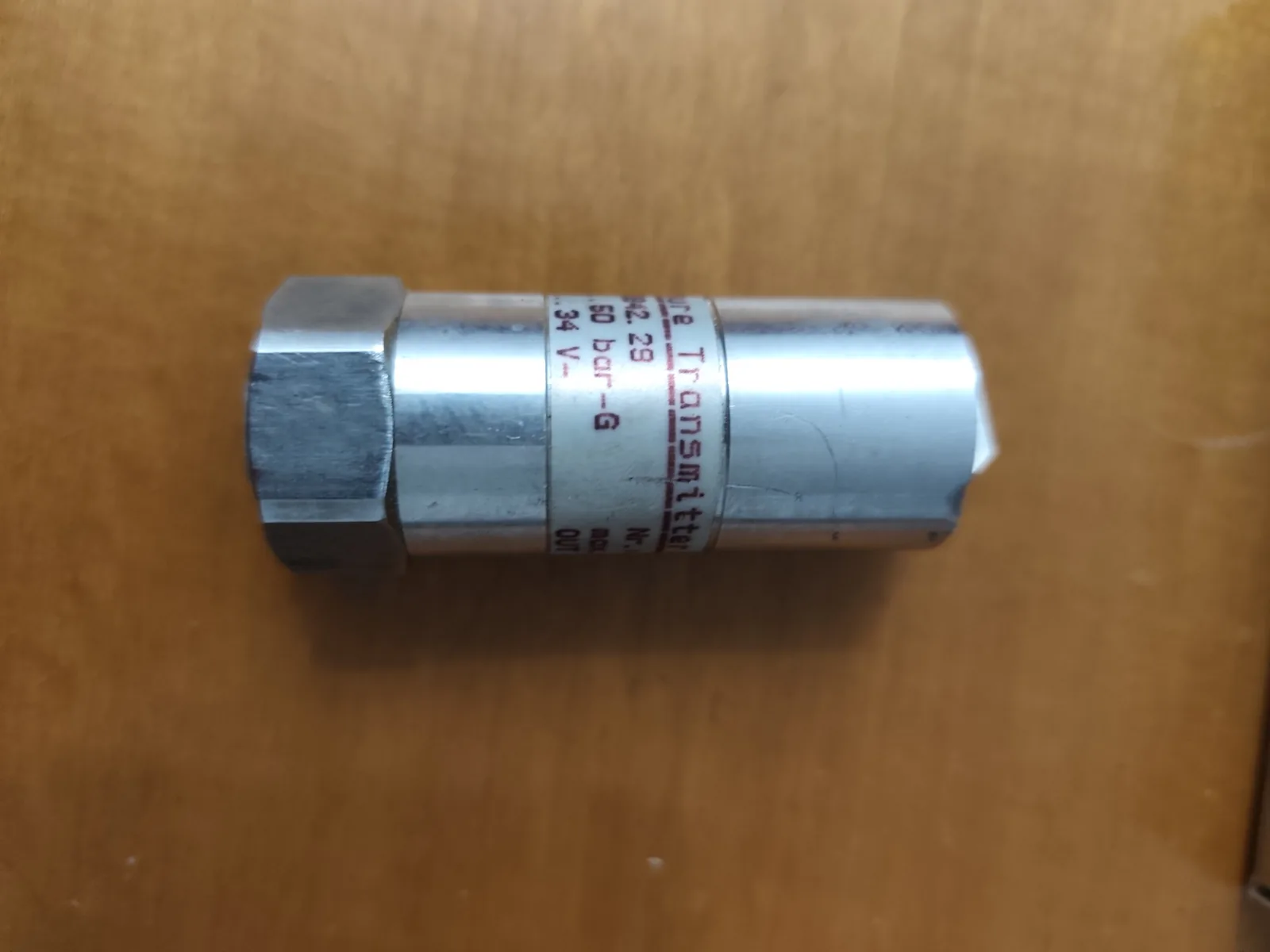

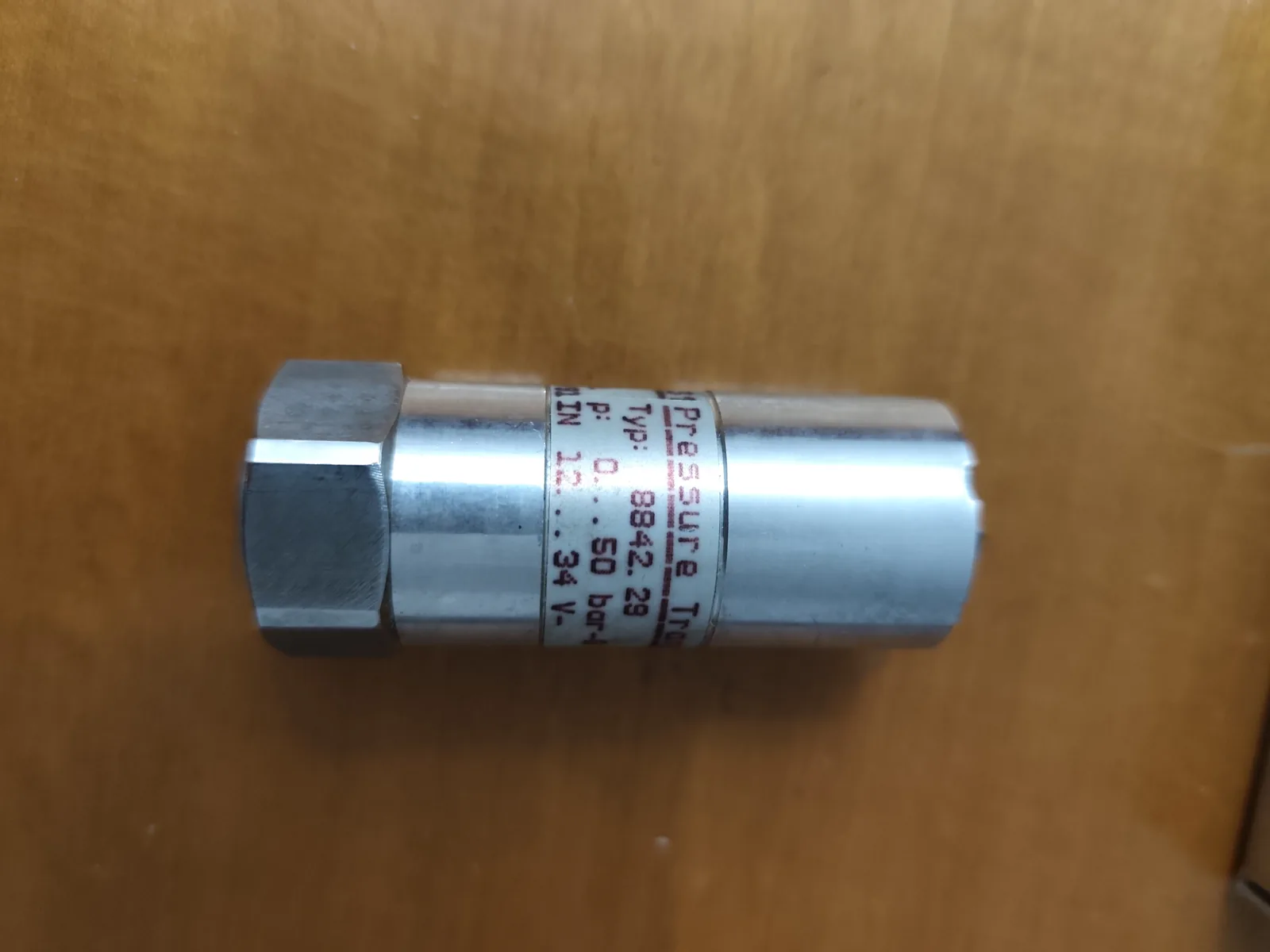

Cylindrical stainless-steel pressure transmitter marked MTU-0015359131, type 8842.29. It measures 0–50 bar gauge (100 bar maximum) and outputs a 4–20 mA signal from a 12–34 V DC supply. A hard-to-find spare for older MTU engine installations still running the original sensor generation.
Specifications
| Part number | MTU 001 535 91 31 (0015359131) |
|---|---|
| Type | 8842.29 |
| Pressure range | 0–50 bar (gauge) |
| Max. pressure | 100 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–34 V DC |
| Date code | 09/91 |
| Condition | New old stock – unused, original packaging |
Condition & what’s in the box

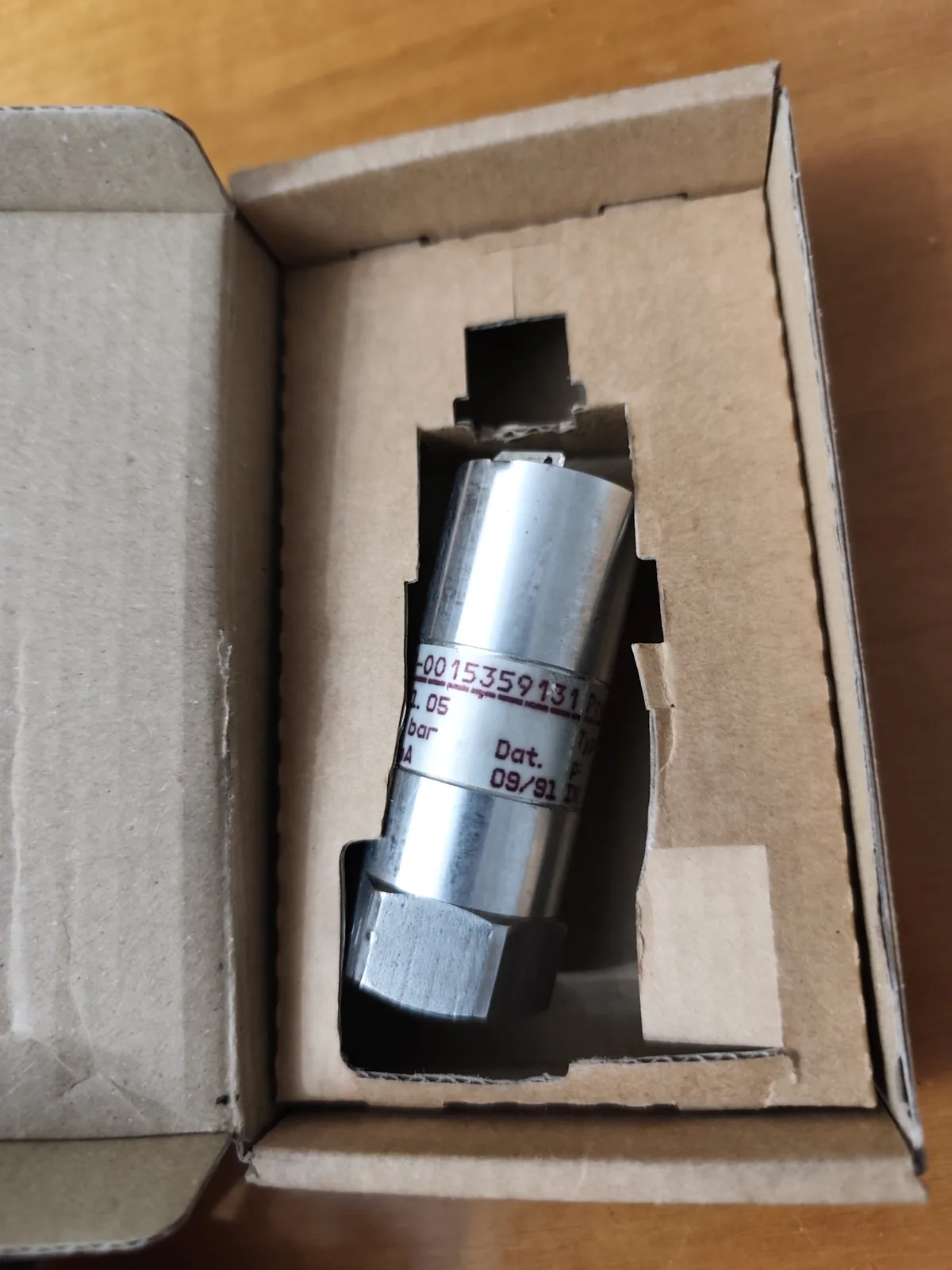

Supplied in its cardboard box with insert. Date code 09/91 — this is genuinely old new-old-stock that has never been installed; minor storage marks on the hex are possible.
Compatibility: Please verify the part number against your engine’s parts list before ordering — we’re happy to check for you: [email protected]
Ships from Nikaia, Piraeus (Greece). Additional photos of the actual item are available on request.
Part number & search references
MTU part number written as: 001 535 91 31 · 0015359131 · 001.535.91.31 · 001-535-91-31 · 8842.29 · 884229
| Weight | 0,3 kg |
|---|---|
| Part number | MTU 001 535 91 31 (0015359131) |
| Type | 8842.29 |
| Pressure range | 0–50 bar (gauge) |
| Max. pressure | 100 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–34 V DC |
| Date code | 09/91 |
| Condition | New old stock – unused, original packaging |
