MTU 005 535 10 31 Pressure Transmitter (Type 8212.26.2210, 0–8 bar, 4–20 mA)
Part no.: MTU 005 535 10 31 / Trafag 8212.26.2210
- Pressure transmitter for MTU Series engines, MTU part no. 005 535 10 31
- Range 0–8 bar gauge (max. 16 bar), 4–20 mA, 12–36 V DC, CE marked
- New old stock, unused, in labelled box with foam insert
1.190,00 €
3 in stock
Make an offer
Συχνές Ερωτήσεις
What is the MTU 005 535 10 31 pressure transmitter used for?
The MTU 005 535 10 31 is a pressure transmitter for measuring 0–8 bar gauge pressure on compatible MTU marine propulsion and genset engines. It provides a 4–20 mA output signal for monitoring and control systems.
What are the specifications of this pressure transmitter?
This transmitter is type 8212.26.2210, measures 0–8 bar gauge pressure, and has a maximum pressure rating of 16 bar. It operates from a 12–36 V DC supply and provides a 4–20 mA output.
Is the MTU 005 535 10 31 compatible with my engine?
Compatibility should be confirmed by checking part number 005 535 10 31, also written as 0055351031, against your engine parts list. You can contact [email protected] for assistance with verification before ordering.
What condition is the pressure transmitter in, and what is included?
The transmitter is unused new old stock in its original labelled packaging with a foam insert. The box is CE marked and carries date code 10/08.
Where does the pressure transmitter ship from, and are photos available?
The item ships from Nikaia, Piraeus, Greece. Additional photos of the actual transmitter are available on request.

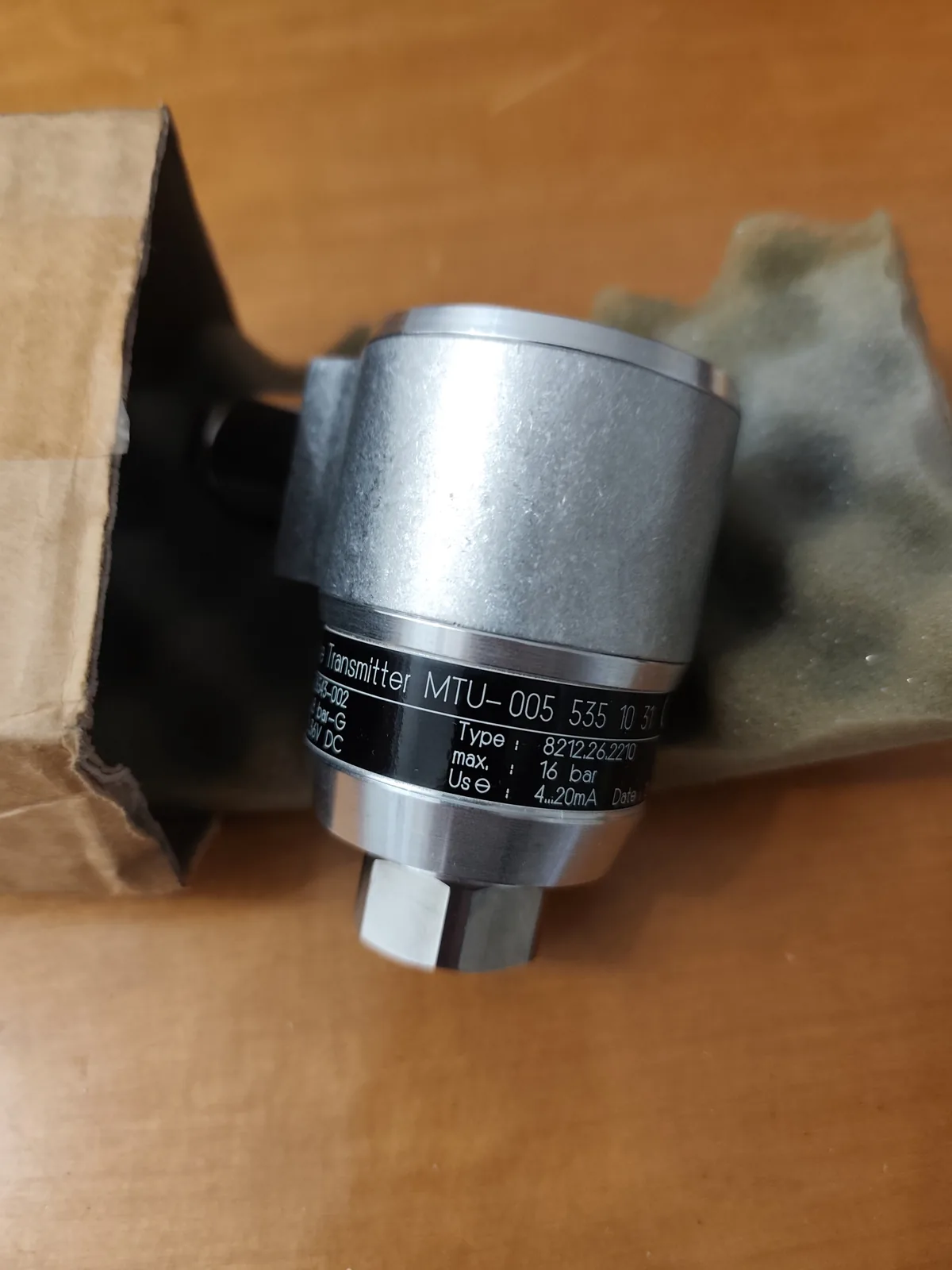

Robust angled-connector pressure transmitter supplied under MTU part number 005 535 10 31, type 8212.26.2210. It measures 0–8 bar gauge with a 16 bar overload rating and delivers a 4–20 mA signal from a 12–36 V DC supply — a common sensor position on MTU marine propulsion and genset engines.
Specifications
| Part number | MTU 005 535 10 31 (0055351031) |
|---|---|
| Type | 8212.26.2210 |
| Pressure range | 0–8 bar (gauge) |
| Max. pressure | 16 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–36 V DC |
| Date code | 10/08 |
| Condition | New old stock – unused, original packaging |
Condition & what’s in the box

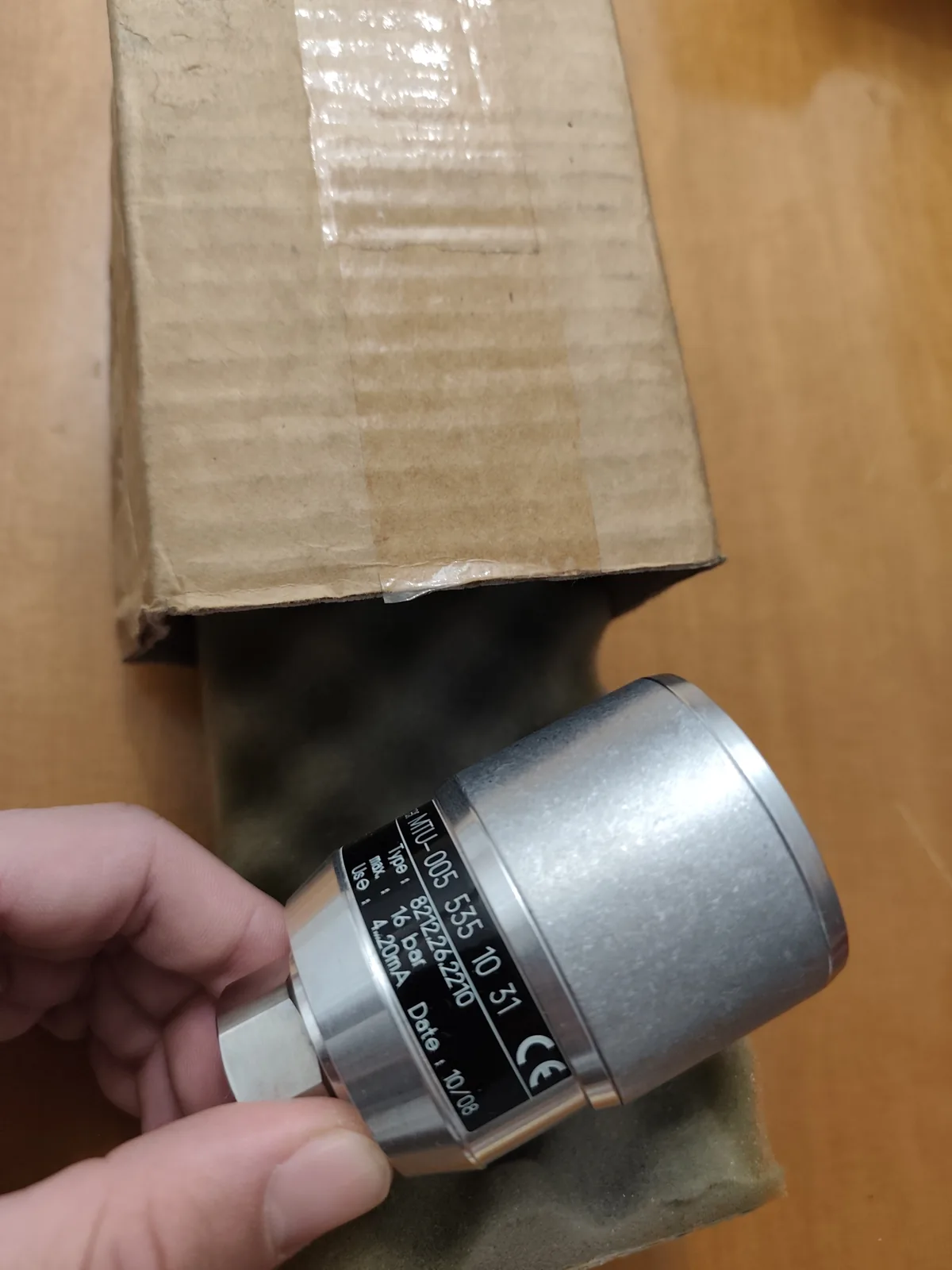

Supplied in its labelled box with foam insert (date code 10/08, CE marked). Three units in stock; unused new-old-stock.
Compatibility: Please verify the part number against your engine’s parts list before ordering — we’re happy to check for you: [email protected]
Ships from Nikaia, Piraeus (Greece). Additional photos of the actual item are available on request.
Part number & search references
MTU part number written as: 005 535 10 31 · 0055351031 · 005.535.10.31 · 005-535-10-31 · 8212.26.2210 · 8212262210 · 8212 26 2210
| Weight | 0,4 kg |
|---|---|
| Part number | MTU 005 535 10 31 (0055351031) |
| Type | 8212.26.2210 |
| Pressure range | 0–8 bar (gauge) |
| Max. pressure | 16 bar |
| Output signal | 4–20 mA |
| Supply voltage | 12–36 V DC |
| Date code | 10/08 |
| Condition | New old stock – unused, original packaging |
